Data Source Editor
The Data Source Editor links the cube elements to the data source.
- In the Cubes list, select a cube.
- In the Navigation Bar, click the
Navigation drop-down list and select
Data Sources.
NoteData Sources are not accessible to Cubes when the In Production option is selected.
- In the Data Sources list, select the Data Source you want to edit.
- In the Navigation Bar, click
Data Source and select
Edit Data Source.
-

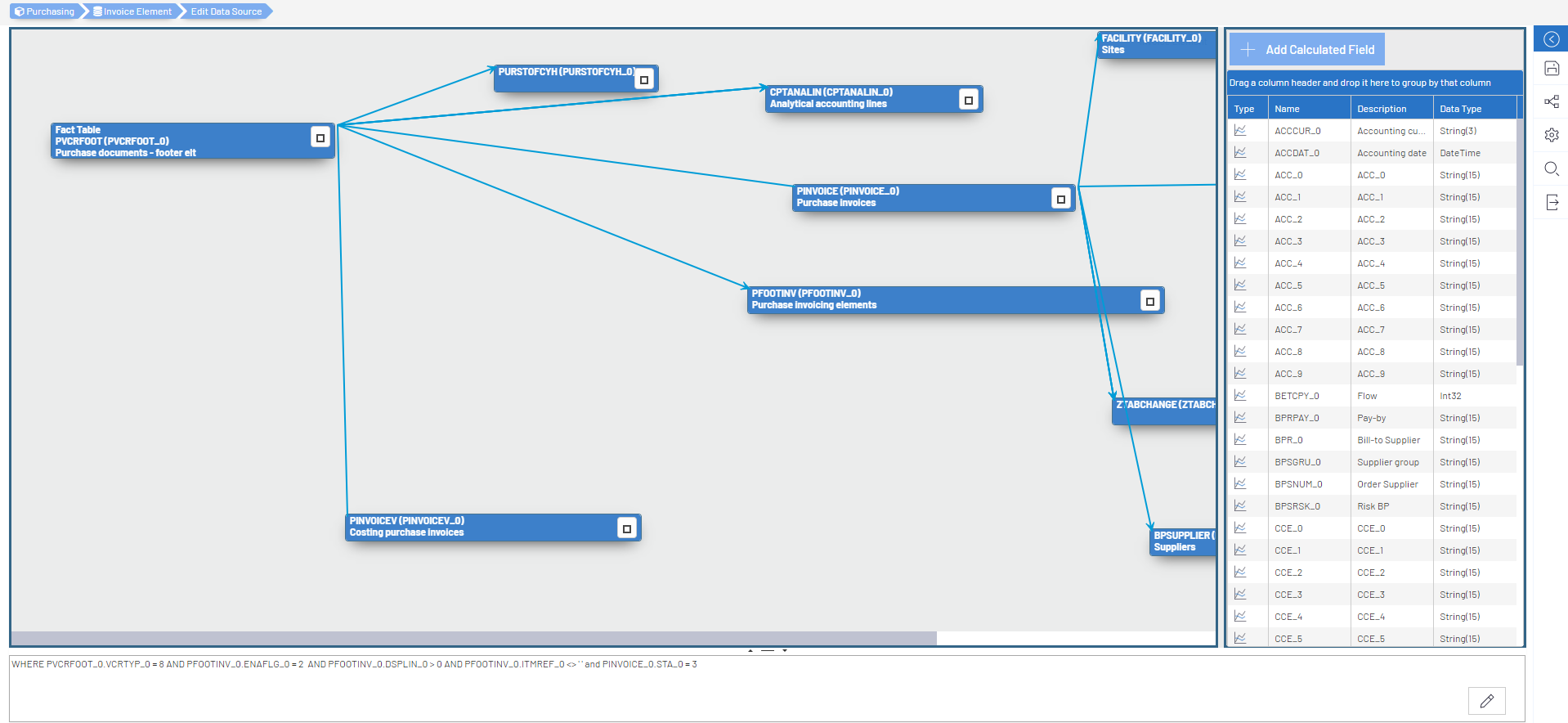

The Data Source Editor screen contains a visual SQL Designer on the main panel, the list of Table Fields for Measures and Dimensions in the cube, and a WHERE clause at the bottom that can be edited by clicking
to open the Advanced Filters option.
List of Dimensions and Measures:
-
Type: Measure or Dimension.
-
Name: Name of the table column.
-
Description: Description of the column.
-
Data Type: Type of field data.
-
-
Proceed to:
